Home 2010 Dodge Grand Caravan SE 3.3L V6 - Flex Gear Train

My Garage

2010 Dodge Grand Caravan

SE 3.3L V6 - Flex

Change Vehicle

Categories

4-Speed; Automatic VLP Transaxle
4-Speed; Automatic VLP Transaxle
Browse Categories

Gear Train for 2010 Dodge Grand Caravan

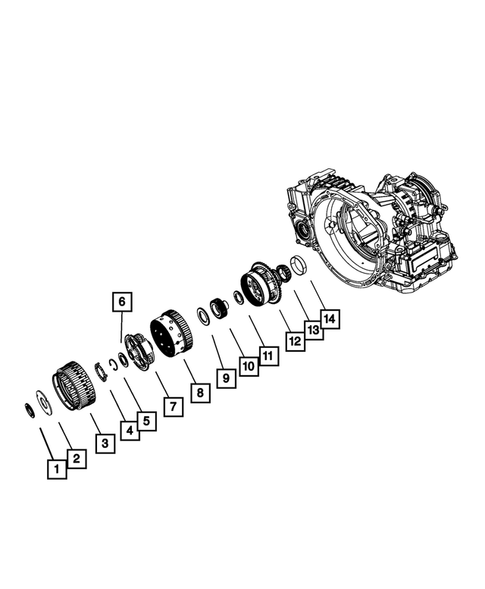

Diagram 1 1. Lock Nut Diagram 2 2. Thrust Bearing
Gear Train for 2010 Dodge Grand Caravan #0
1
10
11
12
13
2
3
3
4
5
6
7
8
9
No.
Part # / Description / Price
Price
1
6507156AA - 4-Speed; Automatic VLP Transaxle: Lock Nut for Mopar Image
Lock Nut
6507156AA
Mopar Mopar
Notes: Engines: 3.3L V6 OHV ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION.
Description: The Mopar Lock Nut (6507156AA) is a genuine OEM fastening component designed to provide secure retention for critical drivetrain and suspension assemblies. Manufactured to Mopar factory specifications, this lock nut ensures precise fitment, reliable clampi ...
MSRP $16.05
$11.50
MSRP $16.05
$11.50
2
6501833 - 4-Speed; Automatic VLP Transaxle: Coned Washer for Mopar Image
Coned Washer
6501833
Mopar Mopar
Notes: Engines: 3.3L V6 OHV ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION.
Description: M22.6x45x3.42. Fwd.
MSRP $8.75
$6.23
MSRP $8.75
$6.23
3
4713443AC - 4-Speed; Automatic VLP Transaxle: Output And Transfer Shaft Gear Package for Mopar Image
Output And Transfer Shaft Gear Package
4713443AC
Mopar Mopar
Notes: Engines: 3.3L V6 OHV ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION.
Description: [50T/46T] Used With a [16T/63T] Differential / Includes: Output & Tranfer Gears, Washer, Nut & Bolt. For Transmission Stamp # [4800932AA]. Includes Items #12, #13.
View Details
View Details
4
4446698AB - 4-Speed; Automatic VLP Transaxle: Transfer Shaft Bearing Cone for Mopar Image
Transfer Shaft Bearing Cone
4446698AB
Mopar Mopar
Notes: Engines: 3.3L V6 OHV ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION.
MSRP $34.00
$24.44
MSRP $34.00
$24.44
5
4504041 - 4-Speed; Automatic VLP Transaxle: Transfer Gear Bearing Cup for Mopar Image
Transfer Gear Bearing Cup
4504041
Mopar Mopar
Notes: Engines: 3.3L V6 OHV ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION.
Description: The Mopar Transfer Gear Bearing Cup (4504041) is a genuine OEM drivetrain component designed to provide a precision mounting surface for the transfer gear bearing within the transmission or transfer case assembly. Manufactured to Mopar factory specificatio ...
MSRP $20.45
$14.76
MSRP $20.45
$14.76
6
4412814AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image
Output/Transfer Shaft Spacer
4412814AB
Mopar Mopar
Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: 3.78mm. Fwd. 3.78 mm.
MSRP $18.10
$13.13
MSRP $18.10
$13.13
6
4412813AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image
Output/Transfer Shaft Spacer
4412813AB
Mopar Mopar
Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: 3.74mm. Fwd. 3.74 mm.
MSRP $18.10
$13.13
MSRP $18.10
$13.13
6
4412822AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image
Output/Transfer Shaft Spacer
4412822AB
Mopar Mopar
Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: 4.10mm. Fwd. 4.10 mm.
MSRP $18.10
$13.13
MSRP $18.10
$13.13
6
4412806AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image
Output/Transfer Shaft Spacer
4412806AB
Mopar Mopar
Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: 3.46mm. Fwd. 3.46 mm.
MSRP $18.10
$13.13
MSRP $18.10
$13.13
6
4412817AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image
Output/Transfer Shaft Spacer
4412817AB
Mopar Mopar
Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: 3.90mm. Fwd. 3.90 mm.
MSRP $18.10
$13.13
MSRP $18.10
$13.13
6
4412810AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image
Output/Transfer Shaft Spacer
4412810AB
Mopar Mopar
Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: 3.62mm. Fwd. 3.62 mm.
MSRP $18.10
$13.13
MSRP $18.10
$13.13
6
4412812AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image
Output/Transfer Shaft Spacer
4412812AB
Mopar Mopar
Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: 3.70mm. Fwd. 3.70 mm.
MSRP $17.50
$12.71
MSRP $17.50
$12.71
6
4412828AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image
Output/Transfer Shaft Spacer
4412828AB
Mopar Mopar
Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: 4.34mm. Fwd. 4.34 mm.
MSRP $17.50
$12.71
MSRP $17.50
$12.71
6
4412826AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image
Output/Transfer Shaft Spacer
4412826AB
Mopar Mopar
Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: 4.26mm. Fwd. 4.26 mm.
MSRP $18.10
$13.13
MSRP $18.10
$13.13
6
4412809AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image
Output/Transfer Shaft Spacer
4412809AB
Mopar Mopar
Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: Fwd. [3.58mm]. 3.58 mm.
MSRP $18.10
$13.13
MSRP $18.10
$13.13
6
4412819AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image
Output/Transfer Shaft Spacer
4412819AB
Mopar Mopar
Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: 3.98mm. Fwd. 3.98 mm.
MSRP $18.10
$13.13
MSRP $18.10
$13.13
6
4412815AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image
Output/Transfer Shaft Spacer
4412815AB
Mopar Mopar
Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: 3.82mm. Fwd. 3.82 mm.
MSRP $18.10
$13.13
MSRP $18.10
$13.13
6
4412818AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image
Output/Transfer Shaft Spacer
4412818AB
Mopar Mopar
Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: 3.94mm. Fwd. 3.94 mm.
MSRP $18.10
$13.13
MSRP $18.10
$13.13
6
4412807AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image
Output/Transfer Shaft Spacer
4412807AB
Mopar Mopar
Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: 3.50mm. Fwd. 3.50 mm.
MSRP $18.10
$13.13
MSRP $18.10
$13.13
6
4412824AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image
Output/Transfer Shaft Spacer
4412824AB
Mopar Mopar
Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: 4.18mm. Fwd. 4.18 mm.
MSRP $18.10
$13.13
MSRP $18.10
$13.13
6
4412808AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image
Output/Transfer Shaft Spacer
4412808AB
Mopar Mopar
Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: 3.54mm. Fwd. 3.54 mm.
MSRP $17.50
$12.71
MSRP $17.50
$12.71
6
4412811AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image
Output/Transfer Shaft Spacer
4412811AB
Mopar Mopar
Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: 3.66mm. Fwd. 3.66 mm.
MSRP $17.50
$12.71
MSRP $17.50
$12.71
6
4412827AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image
Output/Transfer Shaft Spacer
4412827AB
Mopar Mopar
Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: 4.30mm. Fwd. 4.30 mm.
MSRP $18.10
$13.13
MSRP $18.10
$13.13
6
4412821AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image
Output/Transfer Shaft Spacer
4412821AB
Mopar Mopar
Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: 4.06mm. Fwd. 4.06 mm.
MSRP $18.10
$13.13
MSRP $18.10
$13.13
6
4412820AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image
Output/Transfer Shaft Spacer
4412820AB
Mopar Mopar
Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: 4.02mm. Fwd. 4.02 mm.
View Details
View Details
6
4412825AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image
Output/Transfer Shaft Spacer
4412825AB
Mopar Mopar
Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: 4.22mm. Fwd. 4.22 mm.
MSRP $18.10
$13.13
MSRP $18.10
$13.13
6
4412816AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image
Output/Transfer Shaft Spacer
4412816AB
Mopar Mopar
Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: 3.86mm. Fwd. 3.86 mm.
MSRP $18.10
$13.13
MSRP $18.10
$13.13
6
4412829AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image
Output/Transfer Shaft Spacer
4412829AB
Mopar Mopar
Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: 4.38mm. Fwd. 4.38 mm.
MSRP $14.55
$10.59
MSRP $14.55
$10.59
6
4412823AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image
Output/Transfer Shaft Spacer
4412823AB
Mopar Mopar
Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: 4.14mm. Fwd. 4.14 mm.
MSRP $18.10
$13.13
MSRP $18.10
$13.13
7
4412234 - 4-Speed; Automatic VLP Transaxle: Output Shaft Bearing Cup for Mopar Image
Output Shaft Bearing Cup
4412234
Mopar Mopar
Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: Fwd. Serviced With the Transmission Case.
MSRP $27.50
$19.78
MSRP $27.50
$19.78
8
4412235AB - 4-Speed; Automatic VLP Transaxle: Output Shaft Bearing Cone for Mopar Image
Output Shaft Bearing Cone
4412235AB
Mopar Mopar
Notes: Engines: 3.3L V6 OHV ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION.
Description: Fwd.
MSRP $129.00
$84.19
MSRP $129.00
$84.19
9
4567263 - 4-Speed; Automatic VLP Transaxle: Retaining Nut Stirrup for Mopar Image
Retaining Nut Stirrup
4567263
Mopar Mopar
Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: Fwd.
MSRP $12.85
$9.14
MSRP $12.85
$9.14
10
4659134 - 4-Speed; Automatic VLP Transaxle: Retaining Strap for Mopar Image
Retaining Strap
4659134
Mopar Mopar
Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: Fwd.
MSRP $10.95
$7.87
MSRP $10.95
$7.87
11
6503355 - 4-Speed; Automatic VLP Transaxle: Hex Head Bolt for Mopar Image
Hex Head Bolt
6503355
Mopar Mopar
Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: M8x1.25x10.00. Fwd.
MSRP $7.05
$4.96
MSRP $7.05
$4.96
12
6501832 - 4-Speed; Automatic VLP Transaxle: Output Shaft Washer for Mopar Image
Output Shaft Washer
6501832
Mopar Mopar
Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: Fwd.
MSRP $7.80
$5.51
MSRP $7.80
$5.51
13
6506972AA - 4-Speed; Automatic VLP Transaxle: Hex Head Screw for Mopar Image
Hex Head Bolt
6506972AA
Mopar Mopar
Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: M18x1.50x38.00. M18x1.5x34. Fwd.
MSRP $14.45
$10.35
MSRP $14.45
$10.35
